Elevation

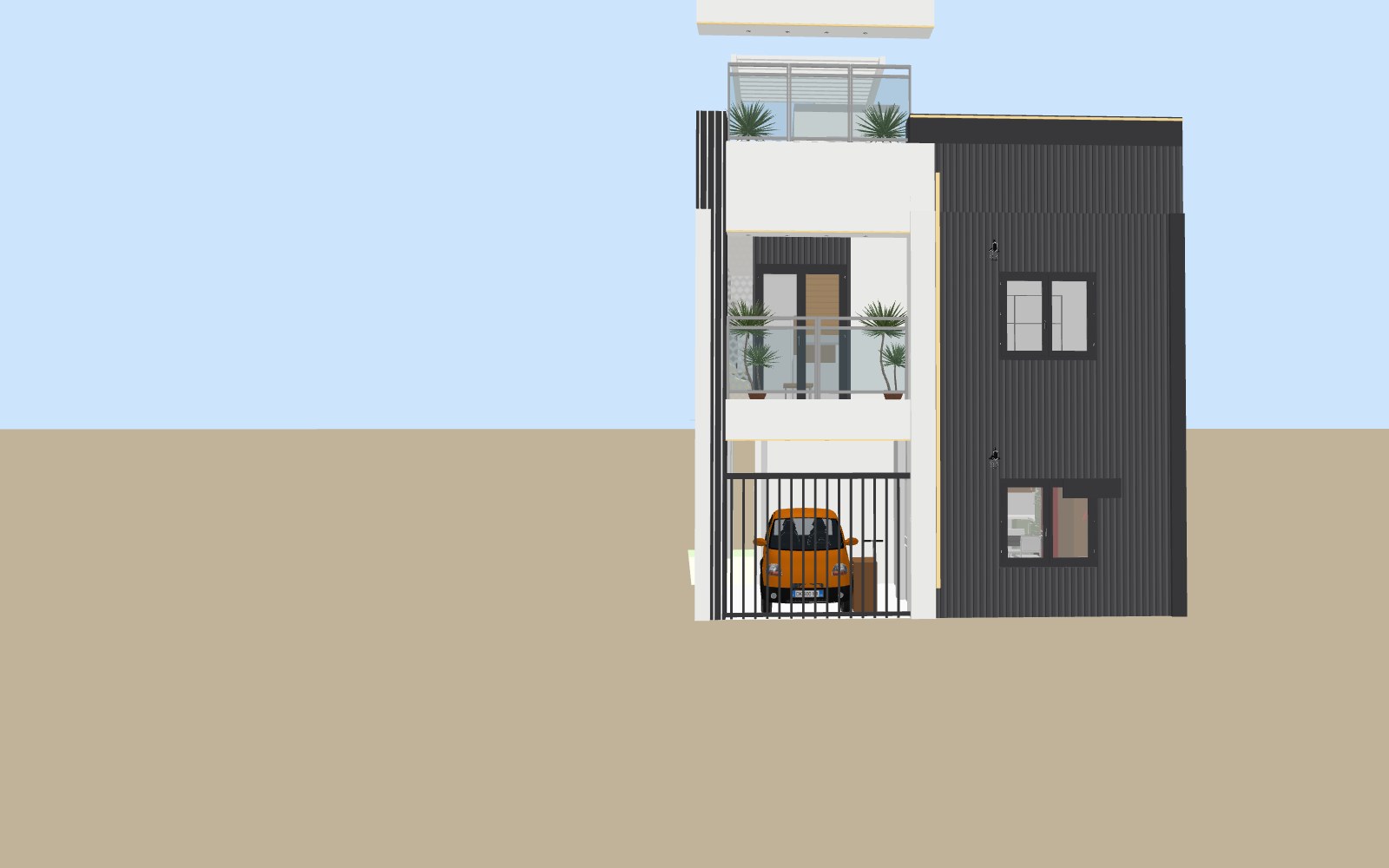

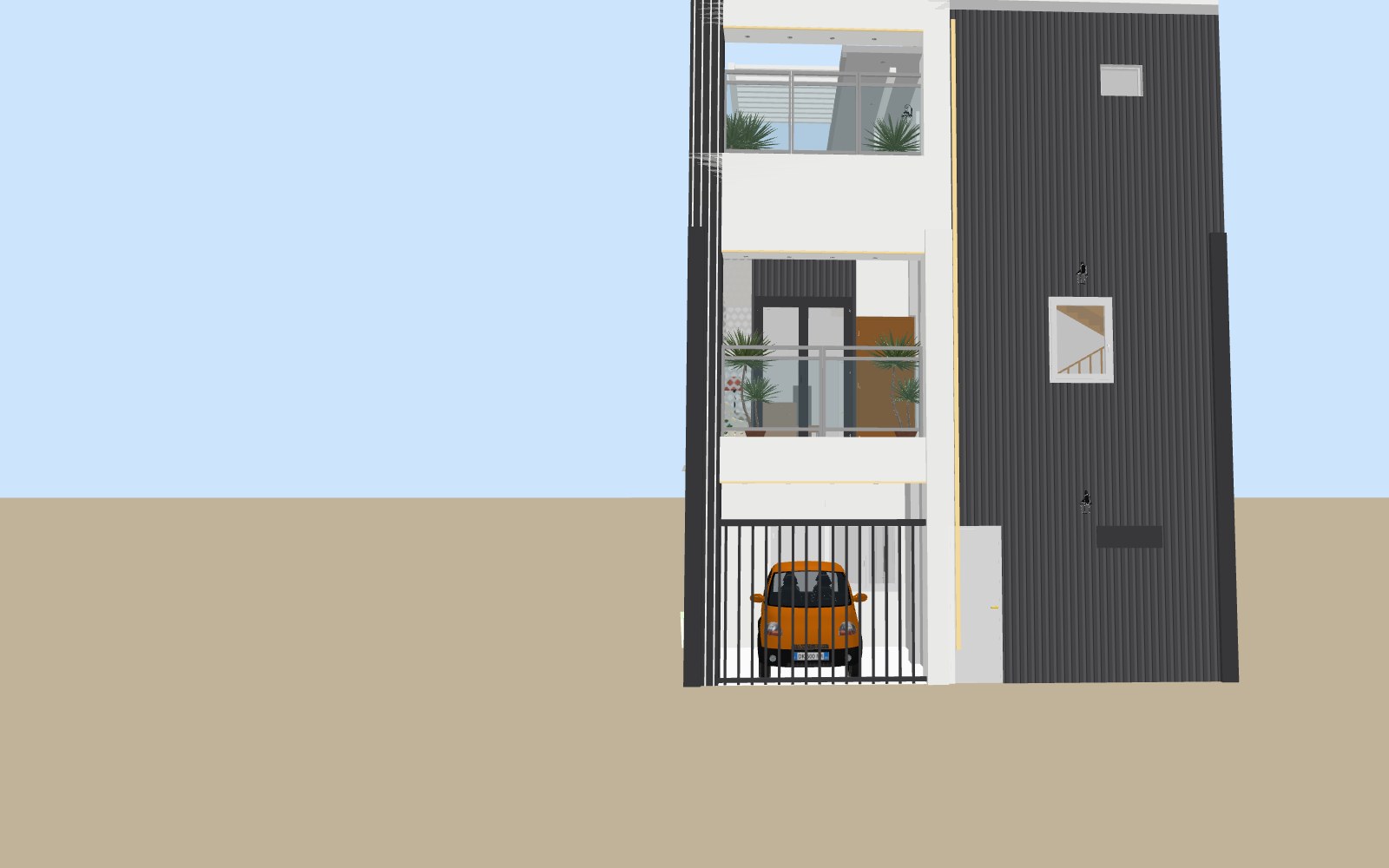

Front from West Road, the north-west corner, the balcony and the terrace. Light stone stair tower with a full-height glass slot, white box frame, wood slat screens, glass rails, LED edges, white pergola.
G+1 with car parking, terrace rooms. 3D model, walk around it with the mouse or your finger.
Drag to rotate, wheel or pinch to zoom. In virtual visit use arrow keys or drag to walk. Pick a floor or a saved viewpoint from the list. Space bar switches aerial view and virtual visit.
Front from West Road, the north-west corner, the balcony and the terrace. Light stone stair tower with a full-height glass slot, white box frame, wood slat screens, glass rails, LED edges, white pergola.

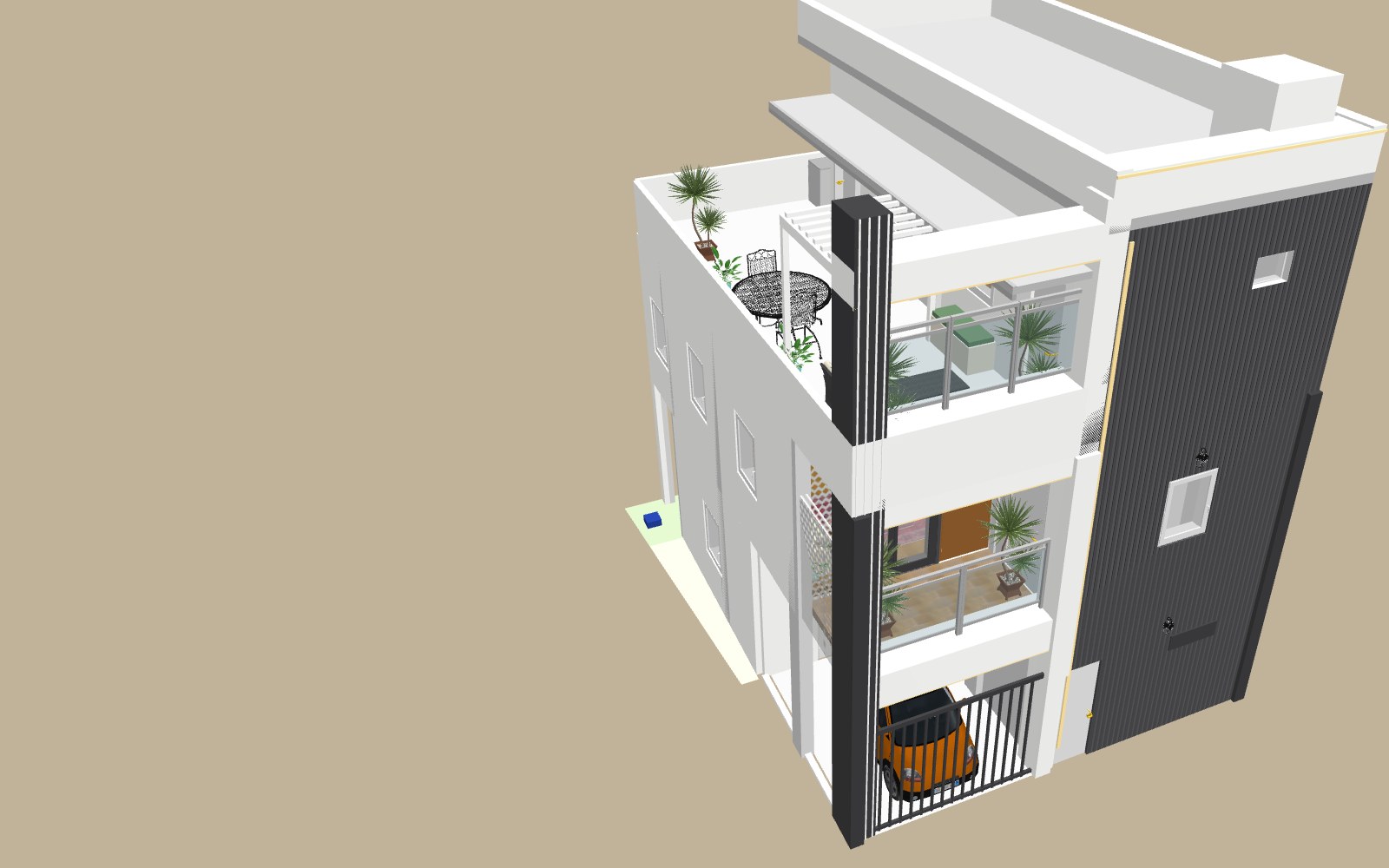

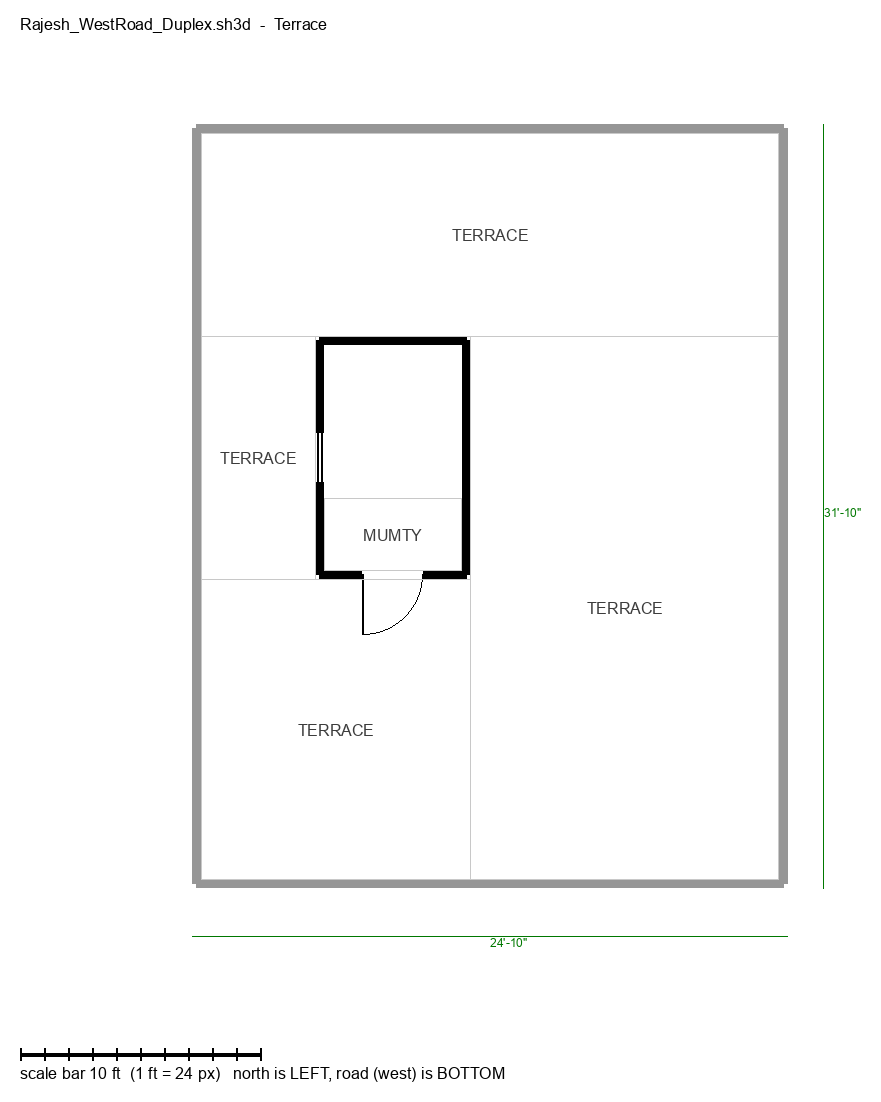

Same G+1 plan without the terrace rooms: open terrace with a 3' parapet, mumty over the stair, tank on the mumty. Same facade below.

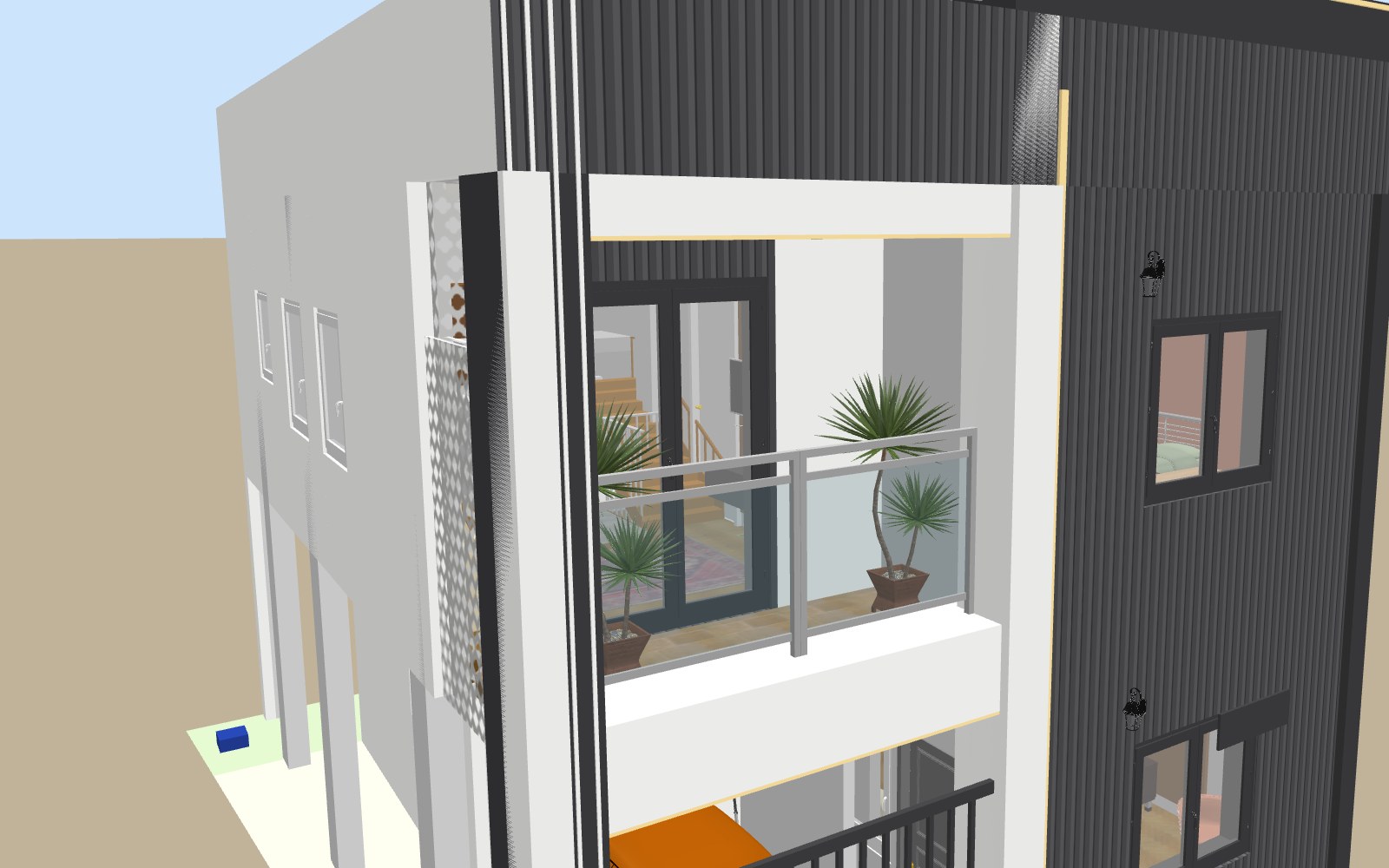

Same design language as the G+1 plan: white boxes, charcoal fluted south bay with an LED line, louver fin, CNC jali, glass rails, white portal and pergola on the terrace.
Aerial view: drag to rotate, wheel or pinch to zoom, right-drag or two fingers to move; pick a floor to see it with the floors above and the ceiling taken off. Virtual visit: walk with the arrow keys (or W A S D, or the on-screen arrows), drag to look around, pick a floor to go there.
Aerial view, the approach from West Road, every main room, the 3D floor plans and the house at dusk with the lights on.

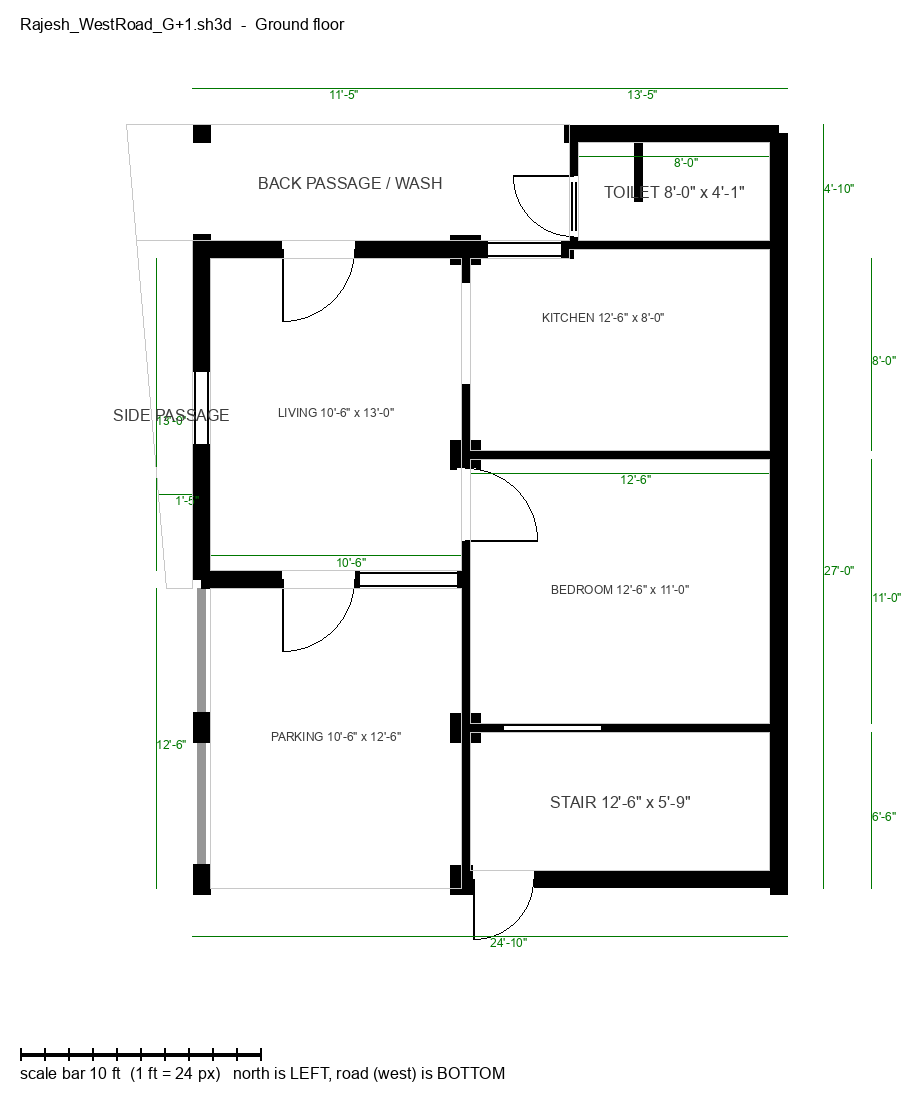

Room sizes are clear inside the walls (walls 9" outside, 4.5" inside; north boundary wall 6", inside the plot line). "max" marks an L-shaped, notched or tapered room: its longest width and depth. Green lines are the column-to-column and outer sizes. Tap a plan to open it full size and zoom.

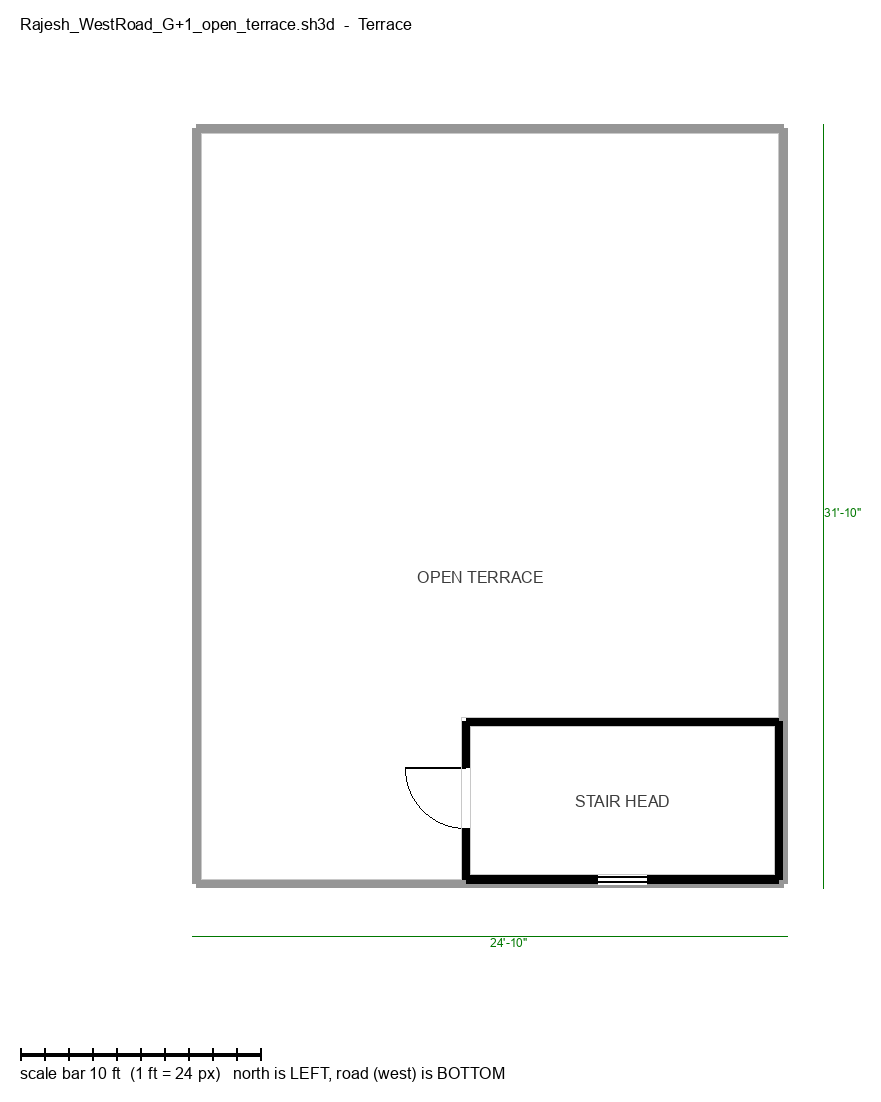

| Room | Clear size (W x D) | sq ft | m² |
|---|---|---|---|
| KITCHEN | max 12'-6" x 8'-4" | 103 | 9.6 |
| BEDROOM | 12'-6" x 10'-9" | 134 | 12.5 |
| TOILET | 8'-0" x 4'-1" | 33 | 3.0 |
| STAIR | 12'-6" x 6'-0" | 75 | 7.0 |
| BACK PASSAGE / WASH (covered) | 18'-0" x 4'-10" | 86 | 8.0 |
| PARKING | 10'-6" x 14'-6" | 152 | 14.1 |
| LIVING | 10'-6" x 11'-0" | 115 | 10.7 |
| SIDE PASSAGE (outside, tapered) | max 1'-10" x 12'-6" | 16 | 1.5 |
| Room | Clear size (W x D) | sq ft | m² |
|---|---|---|---|
| KITCHEN | max 12'-6" x 8'-4" | 103 | 9.6 |
| BEDROOM | 12'-6" x 10'-9" | 134 | 12.5 |
| TOILET | 8'-0" x 4'-1" | 33 | 3.0 |
| STAIR ARRIVAL | 2'-9" x 6'-0" | 16 | 1.5 |
| WASH AREA (covered, open above 3' parapet) | 8'-1" x 4'-1" | 33 | 3.1 |
| SMALL BEDROOM 2 bunks | 6'-6" x 8'-0" | 52 | 4.8 |
| HALL | max 10'-6" x 19'-0" | 175 | 16.3 |
| BALCONY | 10'-6" x 5'-9" | 60 | 5.6 |
| Room | Clear size (W x D) | sq ft | m² |
|---|---|---|---|
| OPEN TERRACE (north bay, L over wash area to the bath) | max 15'-4" x 31'-1" | 352 | 32.7 |
| T-BEDROOM 1 | max 12'-3" x 9'-10" | 120 | 11.1 |
| T-BEDROOM 2 | 12'-3" x 9'-3" | 114 | 10.6 |
| T-BATH | 8'-0" x 4'-1" | 33 | 3.0 |
| STAIR HEAD | 2'-9" x 6'-0" | 16 | 1.5 |
The same ground floor with the living (hall) 11'-0", 12'-0" and 13'-0" deep; the parking takes what is left of the 27'-0". Side gap is the clear space between the living front corner and the north boundary wall. The living is final at 11'-0": the plan above is that one, with the bedroom entered from the kitchen; these three options are the same ground floor with the old bedroom pass from the hall. All three in one PDF, one plan per A4 page.
Rendered in Blender (Cycles) from the same model: light stone cladding on the stair tower, teak fins and gate, real glass, LED lines, afternoon sun from the south-west. Tap a picture to open it full size.
Each room seen from a corner, daylight through the windows and the room lights on.

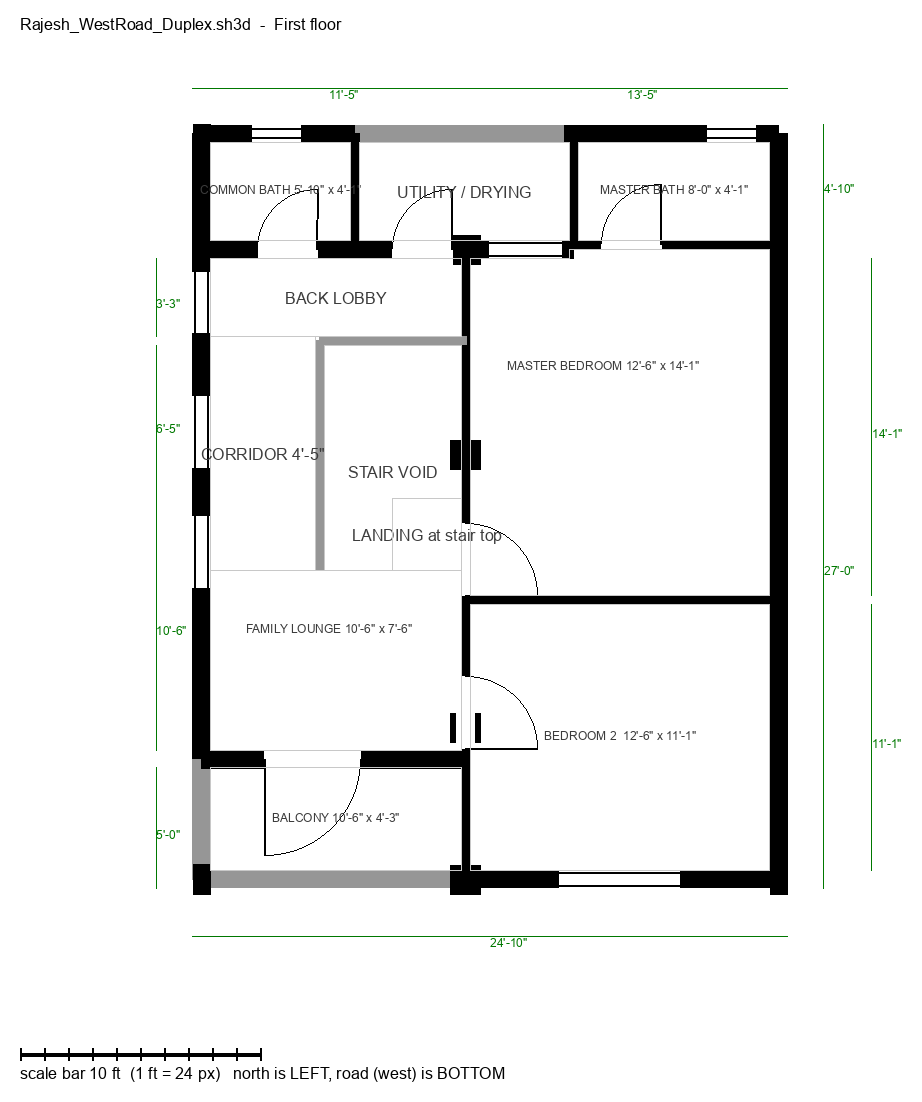

Each floor with the floors above and the ceilings cut away. North is left, West Road is at the bottom.

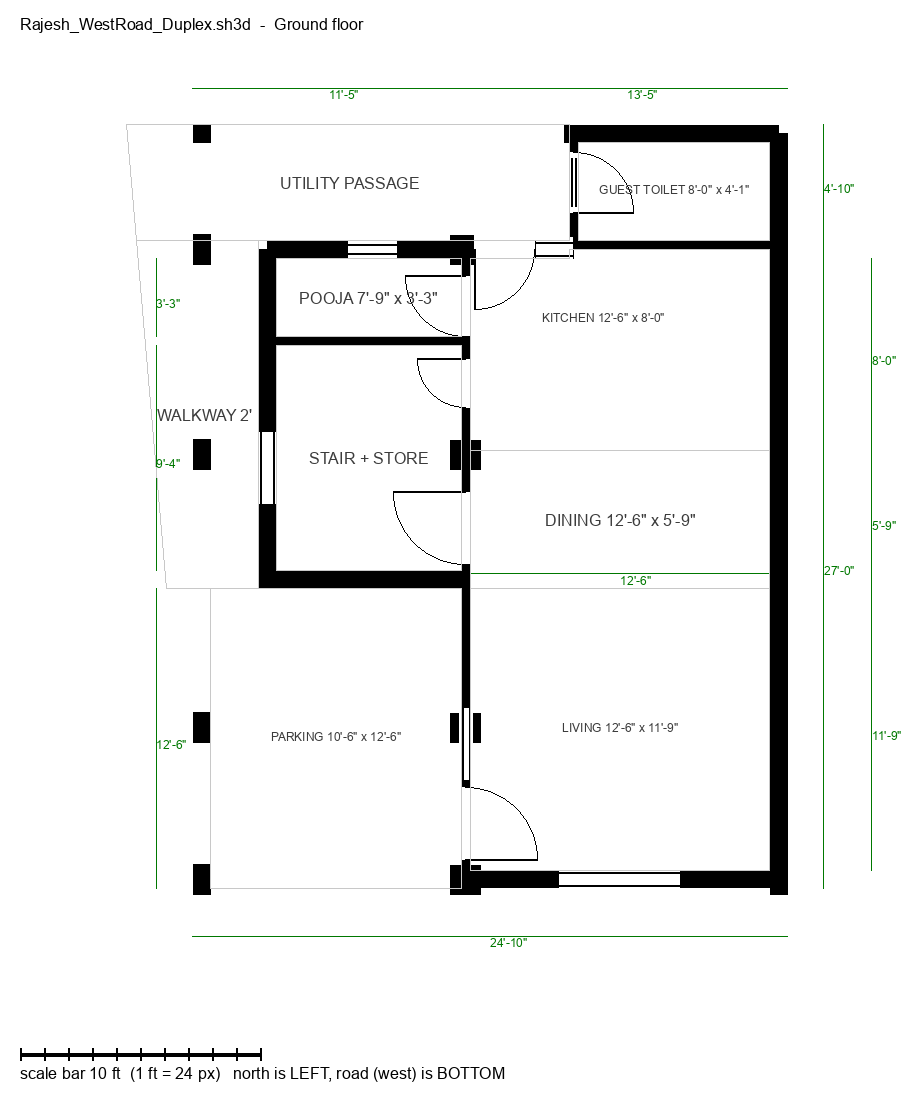

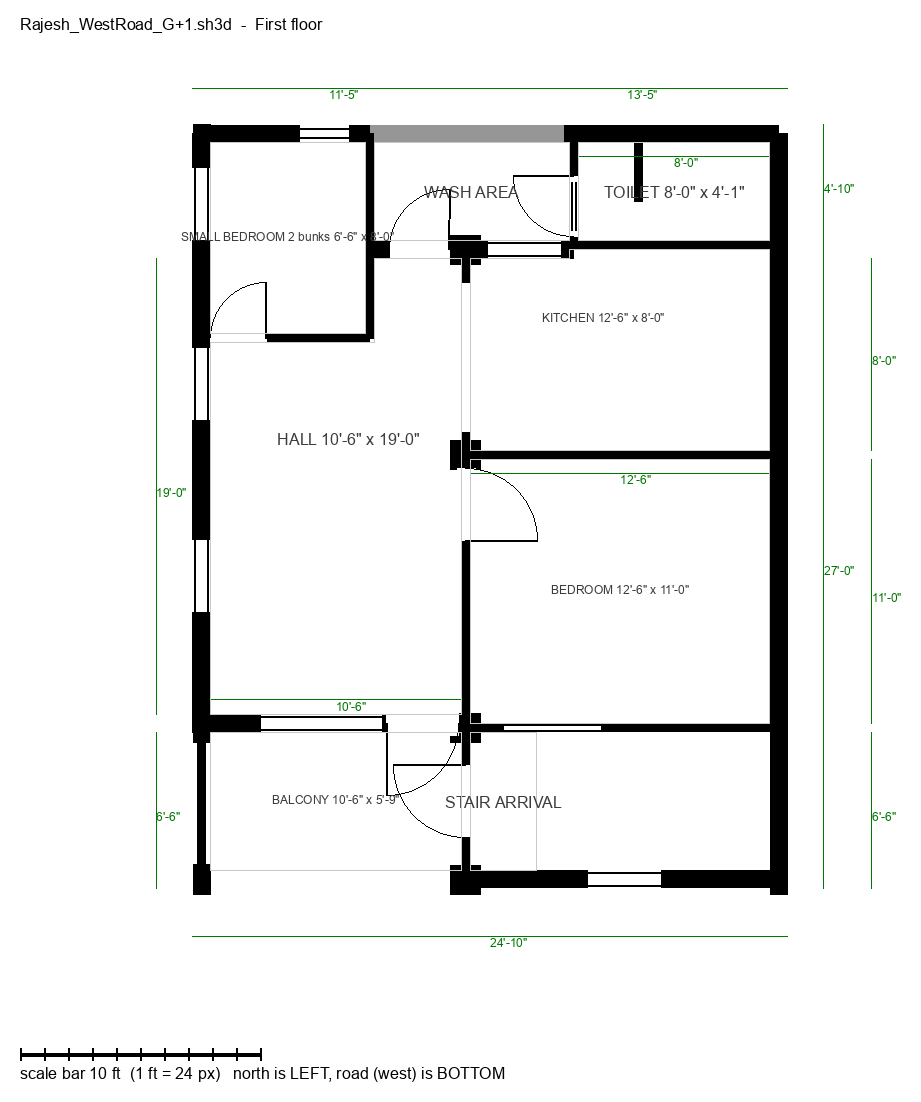

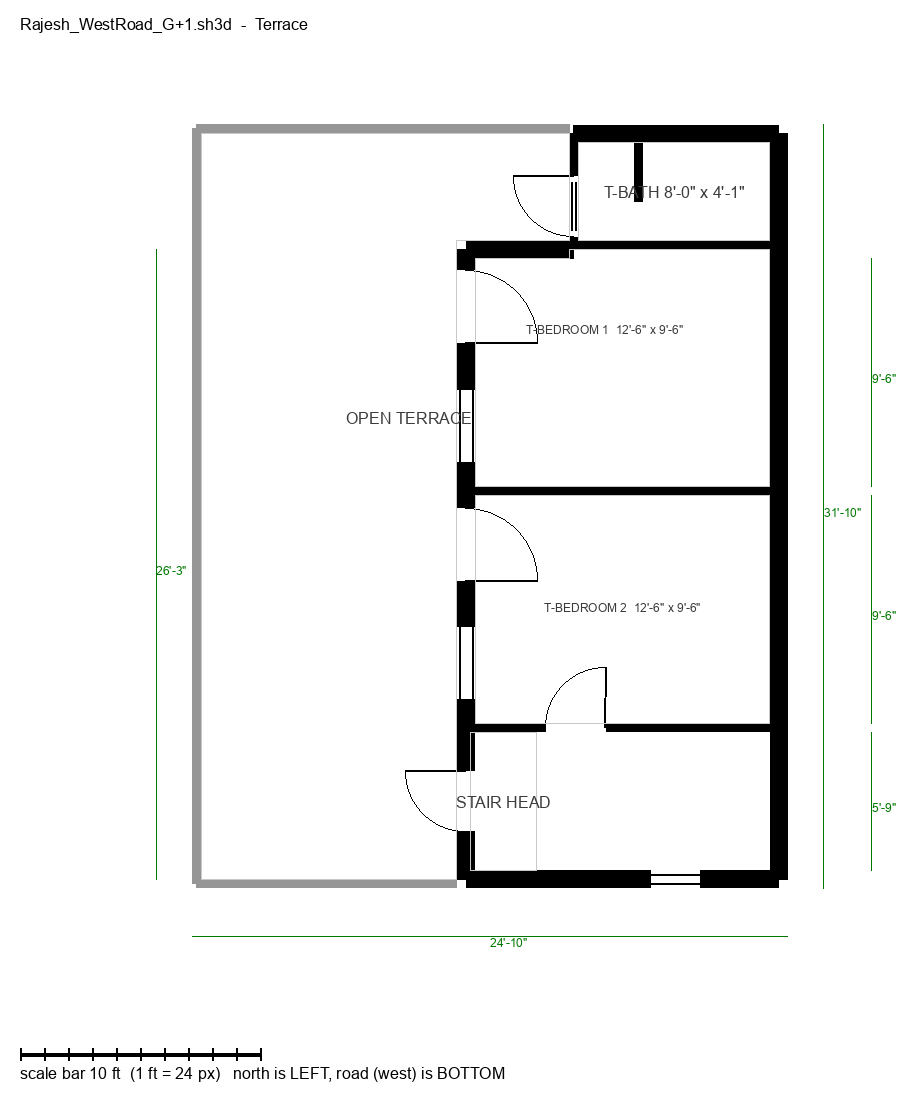

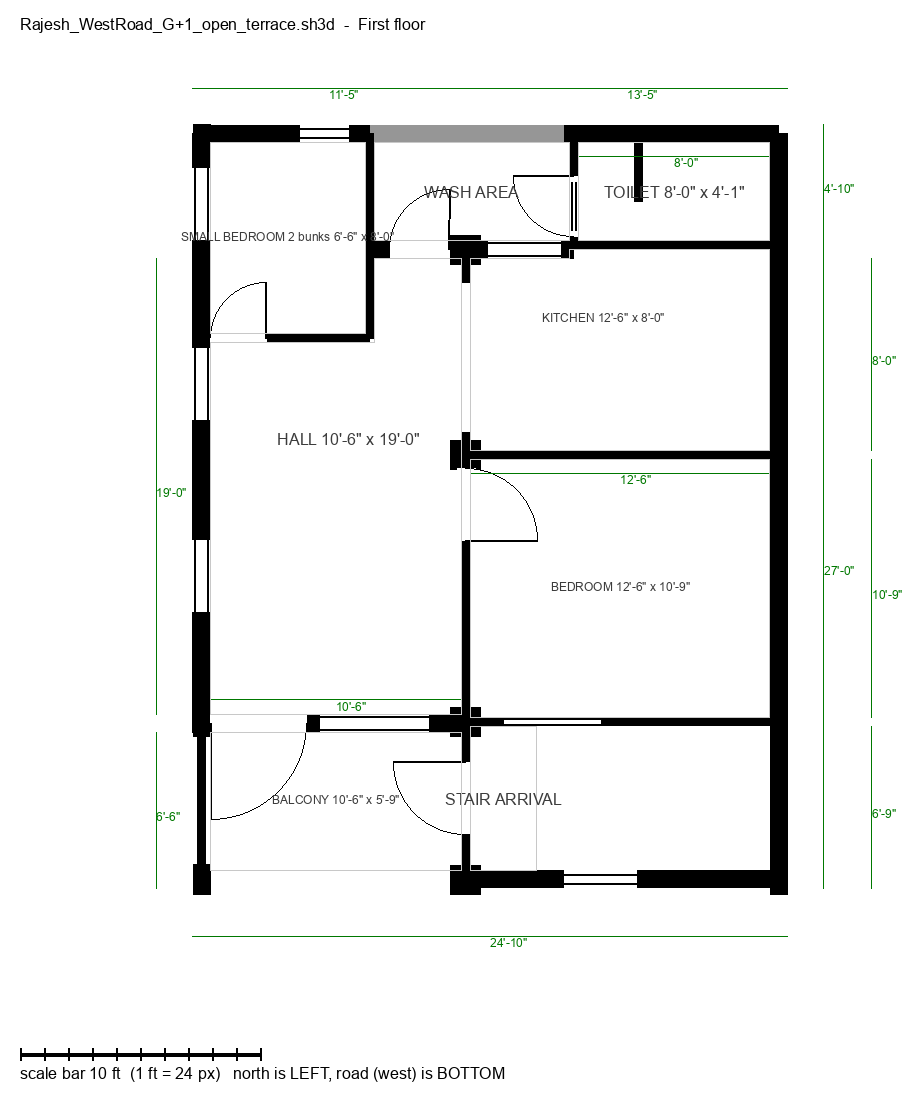

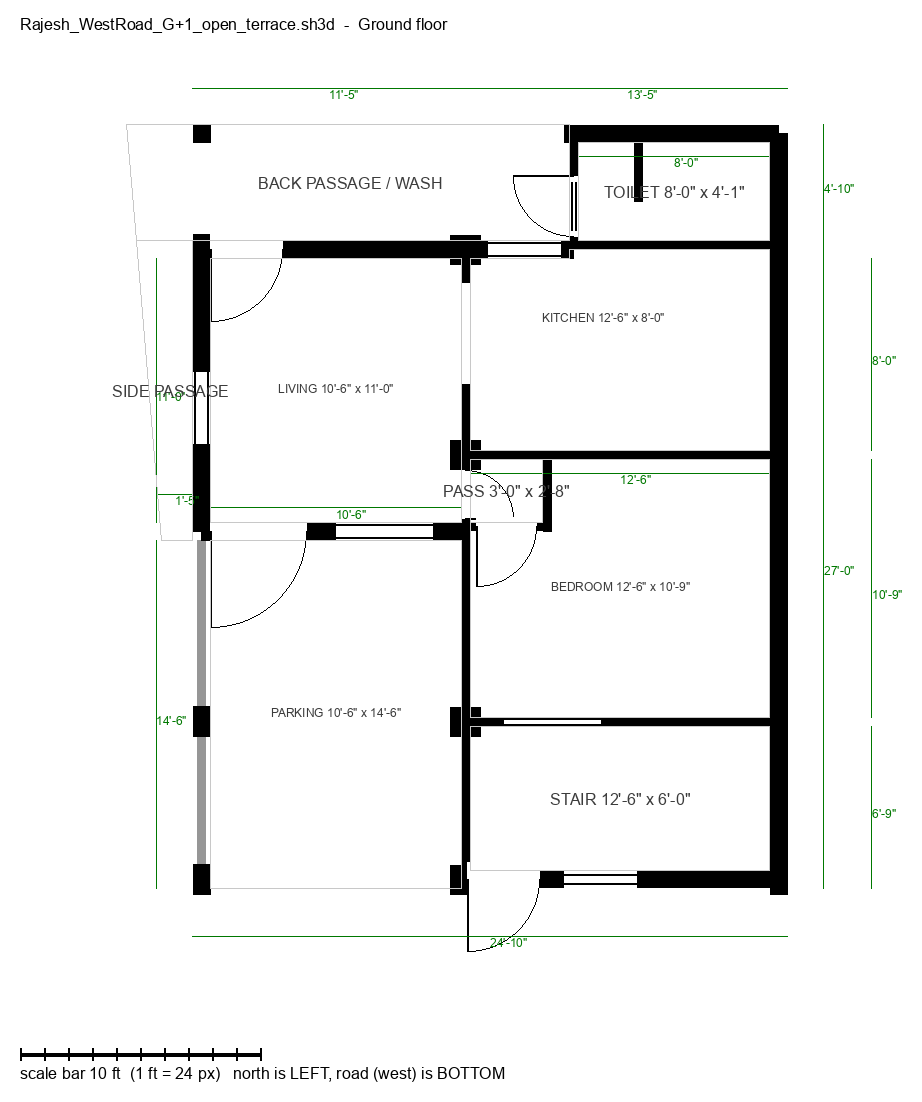

Walls, doors, windows and room sizes from the same model. North is left, West Road is at the bottom. Tap a plan to open it full size.
Aerial view of the whole house, the approach from West Road, then a walk through the ground floor and the first floor.
